Did you insert the document at a skewed angle in the ScanSnap?

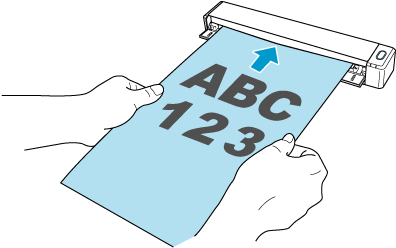

Insert the document straight into the feeding section of the ScanSnap.
Make sure that the document is fed into the ScanSnap and is held firmly.
Have you selected the [Deskew by document text] checkbox in the scan settings?
Depending on the contents of the document, the skewed image may not be corrected properly.
The image may be skewed when you scan the following types of documents:
-
Documents on which pitches between lines or characters are extremely narrow, or characters are overlapped
-
Documents with many outlined or decorated characters
-
Documents with many photographs or figures and few characters
-
Documents with characters on a patterned background
-
Documents with characters printed in various directions such as drawings
-
Documents with long diagonal lines
-
Documents with handwritten characters
Clear the [Deskew by document text] checkbox in the following procedure:
-
Display the scan window of ScanSnap Home on the computer.
-
Select the profile that you are using from the profile list.
-
Click the [Edit profiles] button to display the [Edit profiles] window.
-
Click the [Detailed settings] button in [Scan settings] to display the [Detailed settings] window.
-
Click the [Option] button in the [Scan] tab to display the [Scanning options] window.
-
Clear the [Deskew by document text] checkbox.
